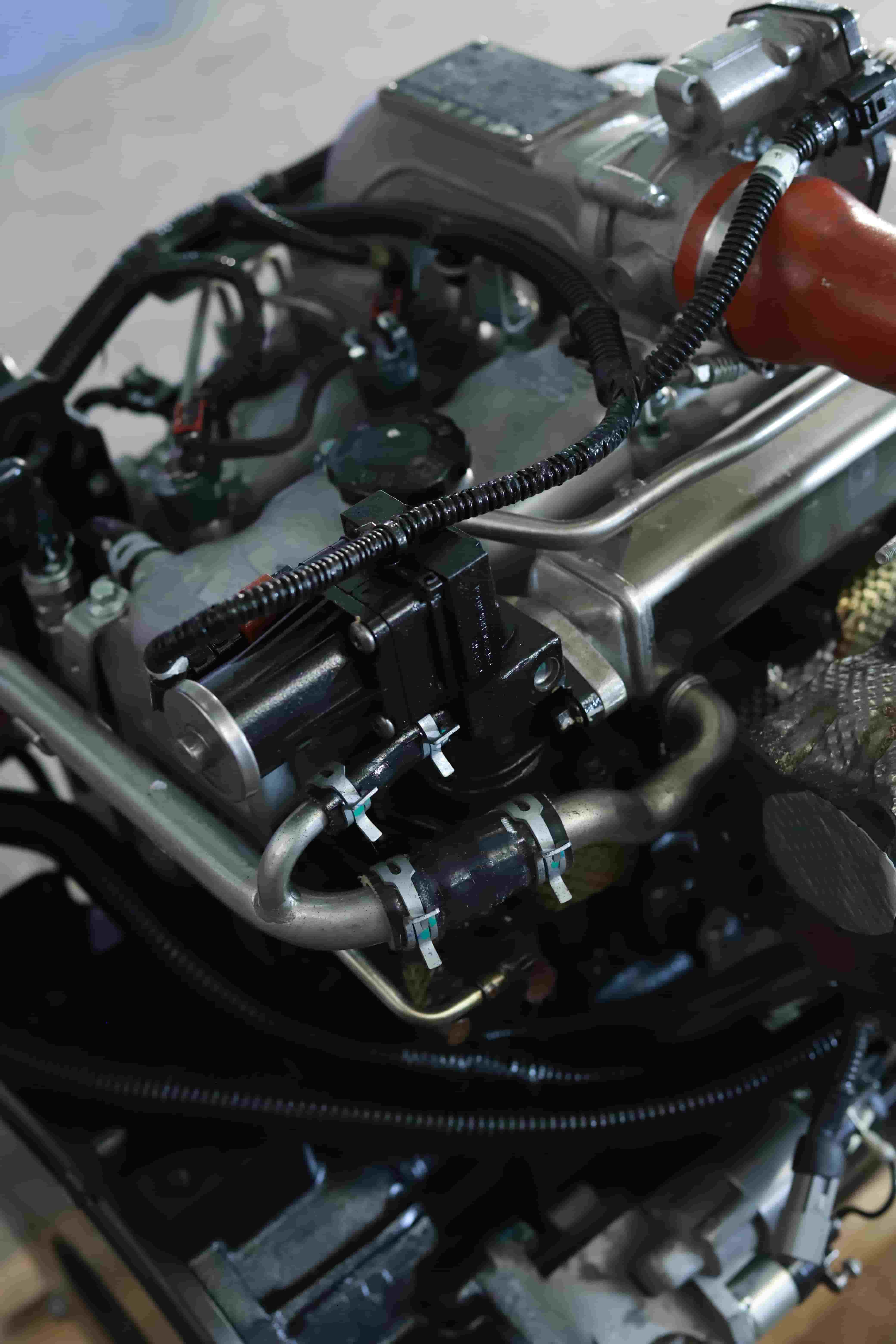

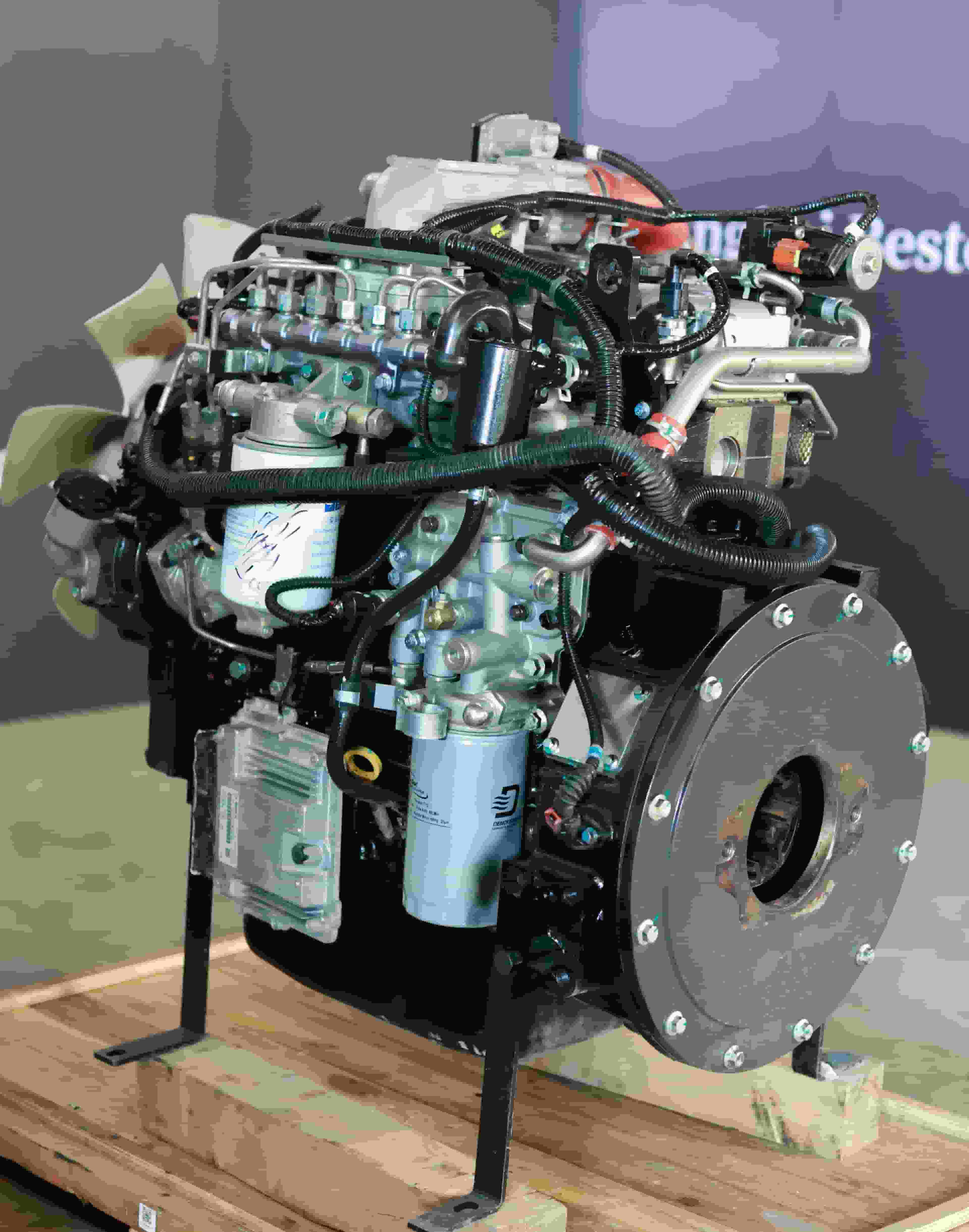

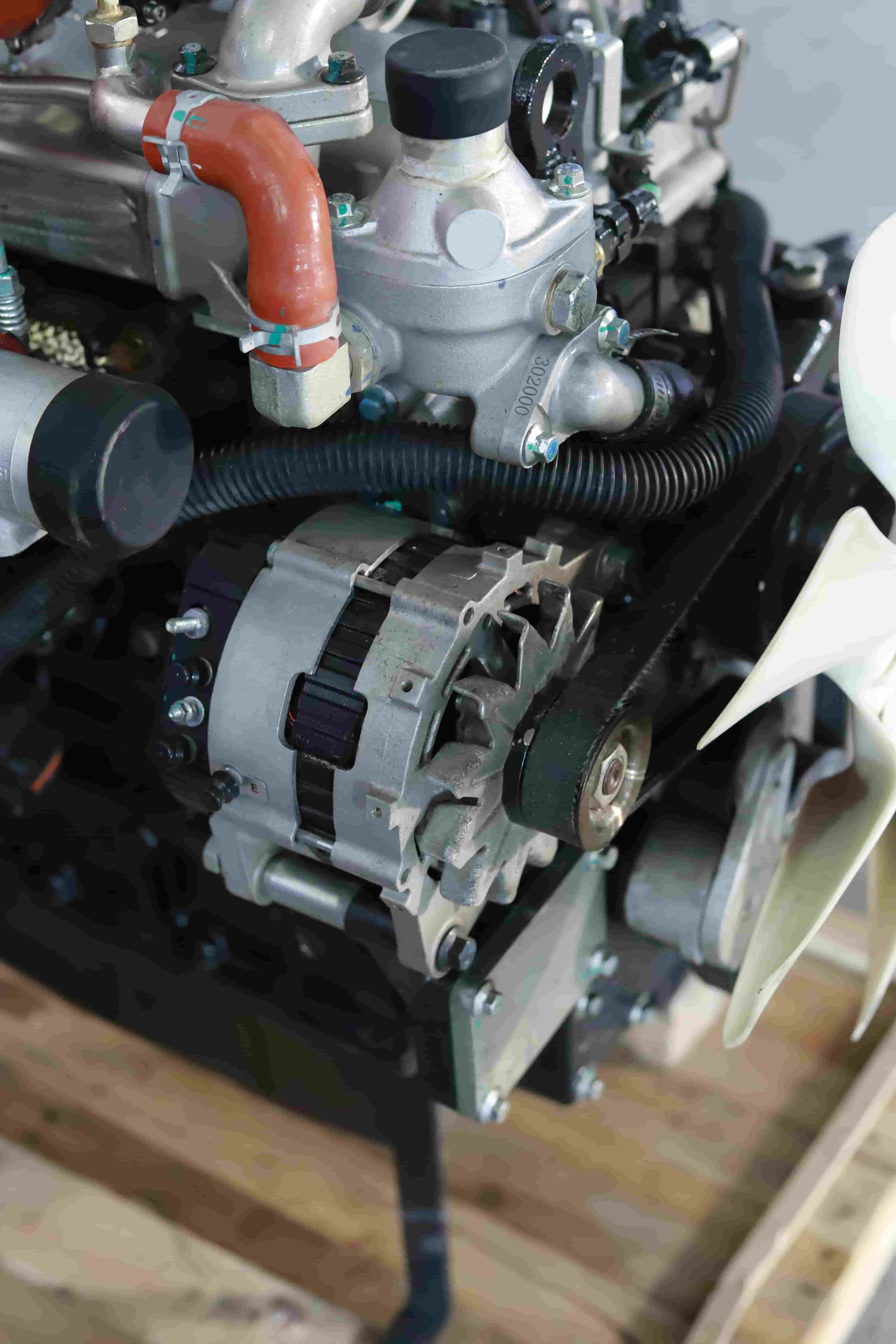

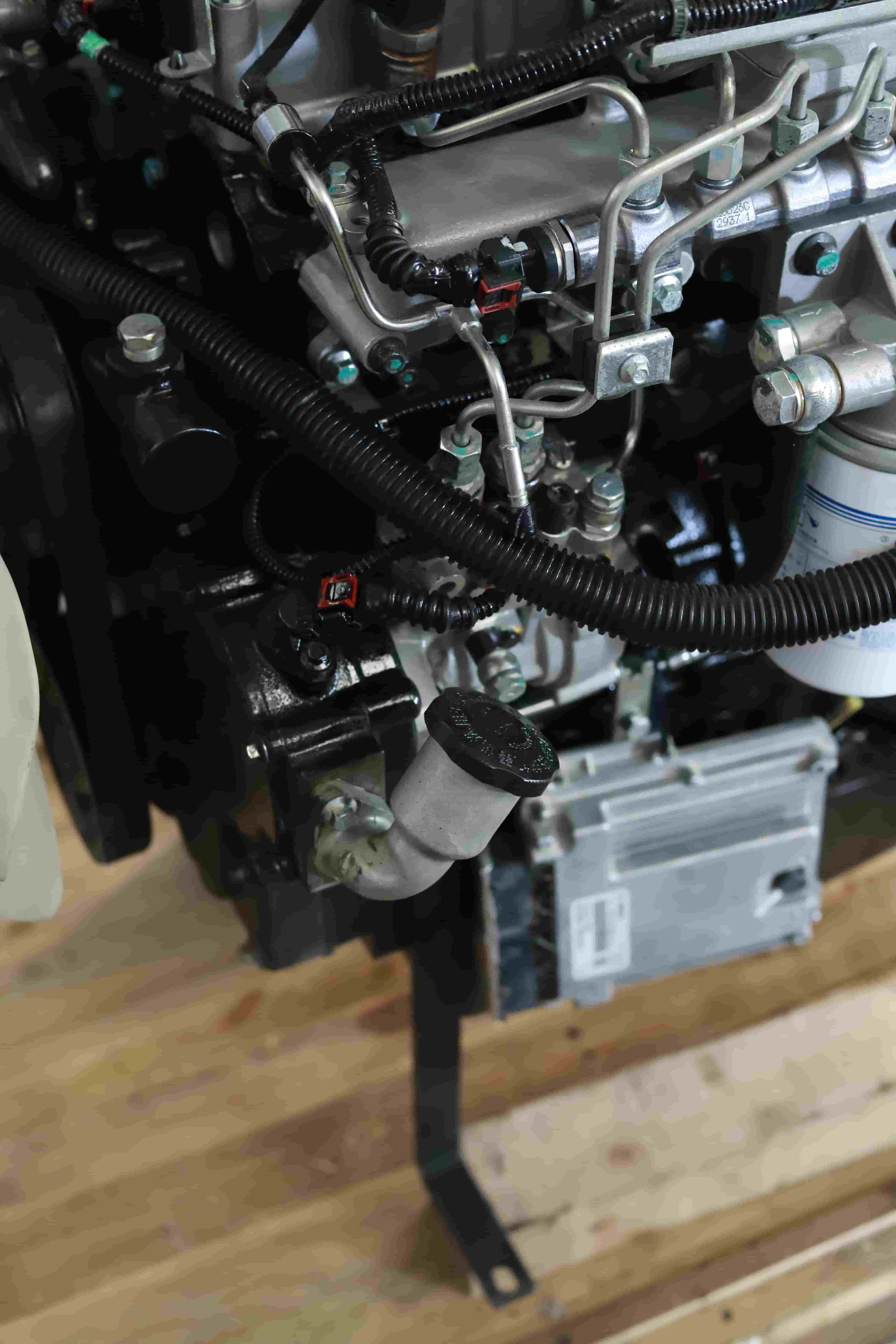

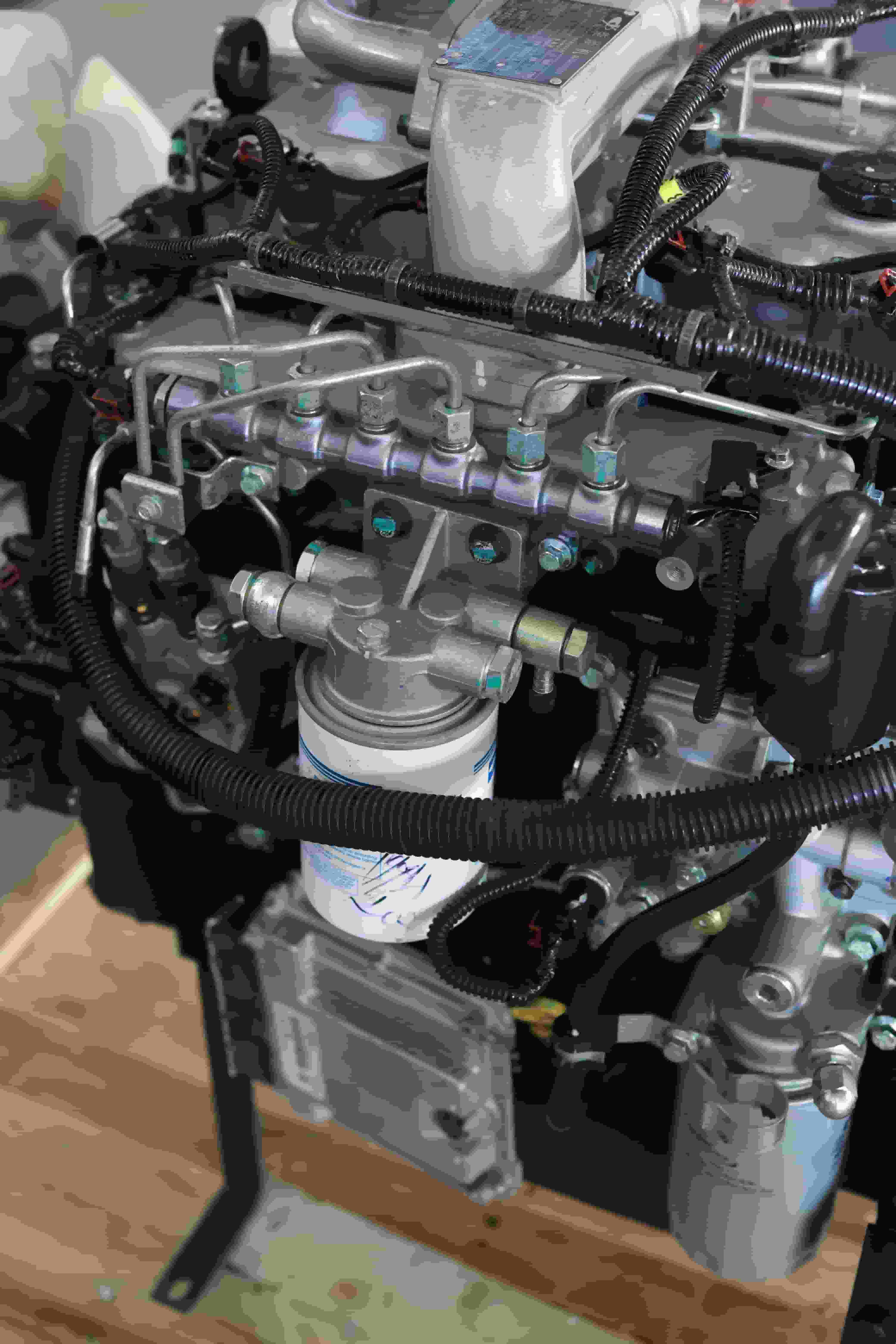

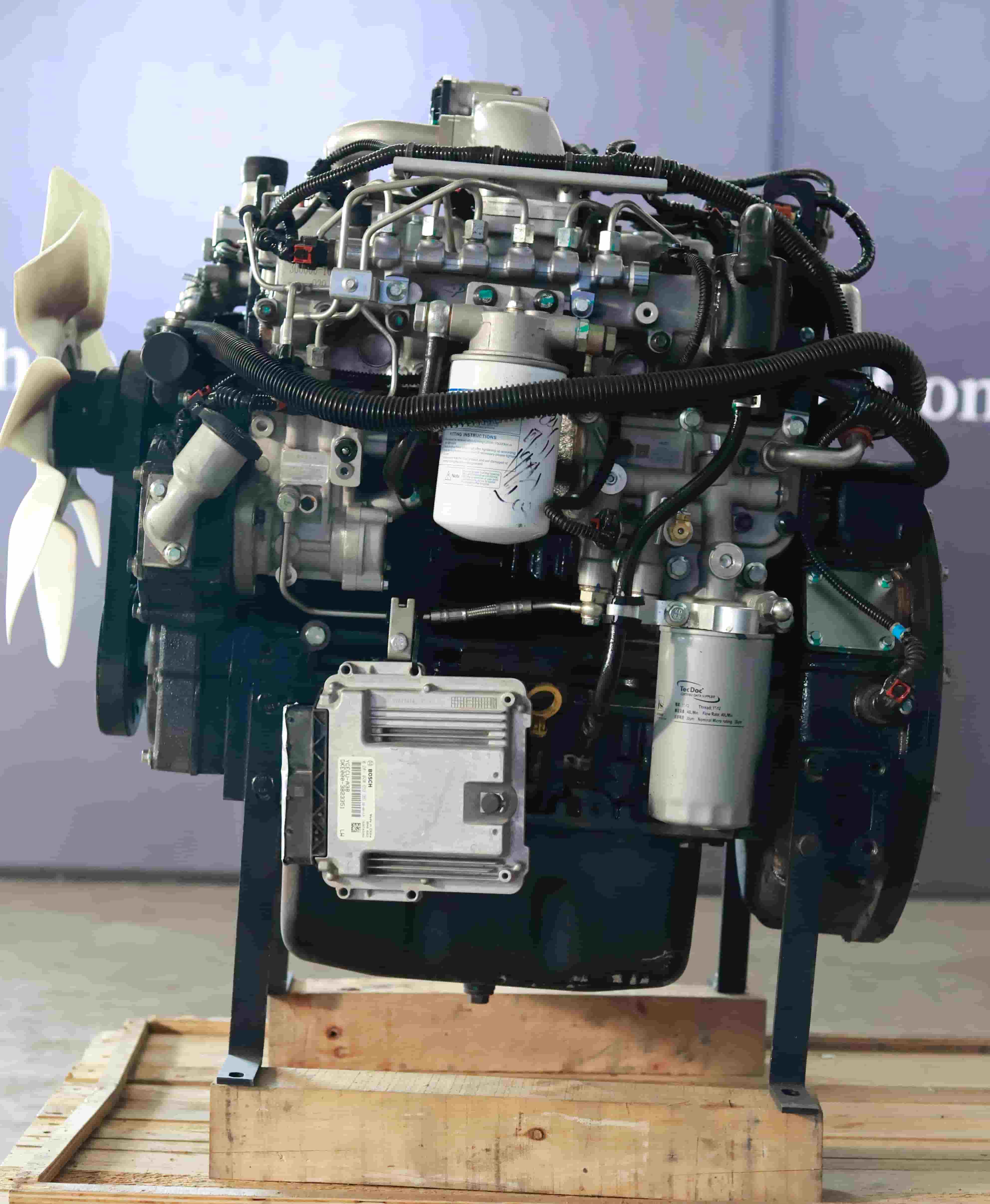

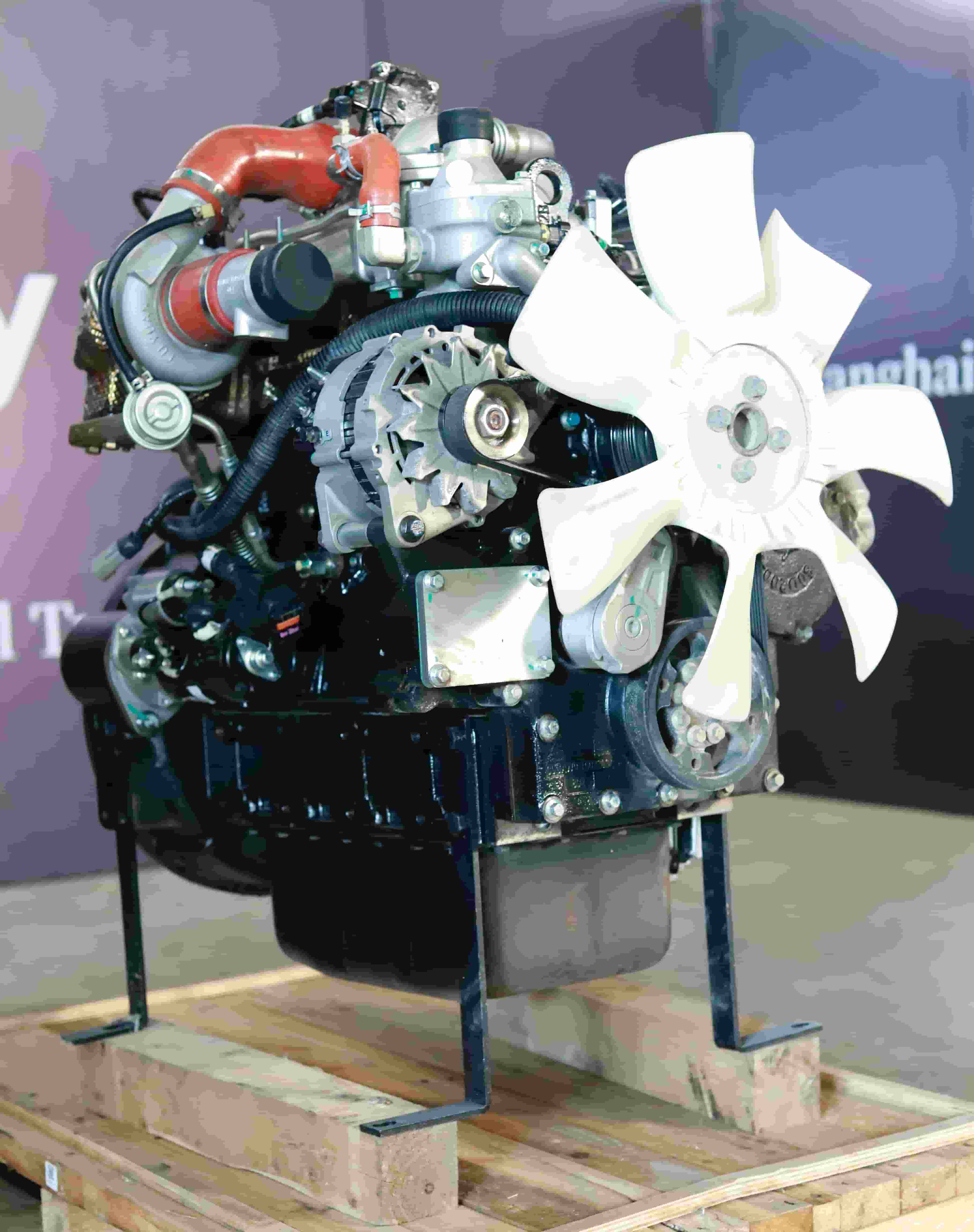

YUCHAI YCF3050-T423

A compact diesel engine designed for non-road mobile machinery such as aerial work platforms, skid steer loaders and small construction equipment, compliant with China Non-road Stage IV emission regulations (equivalent to EU Stage IV / EPA Tier 4 Final level).

Inquire Now Back to Products
Key Specifications
Engine Model YCF3050-T423 Displacement 2.982 L (approx. 3.0 L)
Rated Power 36.8 kW (approx. 50 hp) @ 2400 rpm Max. Torque 210 N·m @ 1500 rpm
Emission Standard China Non-road Stage IV (China IV / Tier 4 Final equivalent) Fuel Type Diesel

Product Description

  • China IV emission compliance: Equipped with a mature electronically controlled high-pressure common rail fuel system and aftertreatment technology, meeting stringent domestic environmental standards without burdensome maintenance.
  • High low-end torque: Delivers a peak torque of 210 N·m at just 1500 rpm — ideal for construction machinery requiring frequent heavy-load starts and operation.
  • Excellent fuel economy: The 3.0 L "golden displacement" combined with electronic fuel injection ensures strong performance while effectively controlling fuel consumption and lowering operating costs.
  • Wide adaptability: Compact structure with highly universal installation interfaces. Widely adopted by OEMs such as XCMG, LiuGong and MEET (Meitong Heavy Industry) for articulated / telescopic boom aerial work platforms, skid steer loaders and special derusting vehicles, among other equipment.
